Electrified Powertrain Products
Best-in-class electrified platforms for an emission-free future.
We have it all.
Magna EtelligentDrive
Electrification is in full swing and range and efficiency are still one of the most important criteria for the driver. We accept this challenge and are constantly working to further develop our electric drives. Our goal: Best-in-Class (BIC) efficiency, safety, dynamism and comfort.
Magna's high-voltage portfolio covers the entire product spectrum for electric vehicles and full and plug-in hybrid vehicles, from individual components to complete systems – from eaxles, eDrive transmissions and highly integrated eDrives to solutions for full and plug-in hybrid vehicles. Our eDrive platform approach offers maximum flexibility through cross-project synergies with maximum scalability from 50 - 250 kW, while our eDrive portfolio provides systems with 400V to 800V operating voltage.
Magna's latest high-power eDrive System delivers world class attributes on efficiency, power-to-weight ratio, torque density and sustainability.

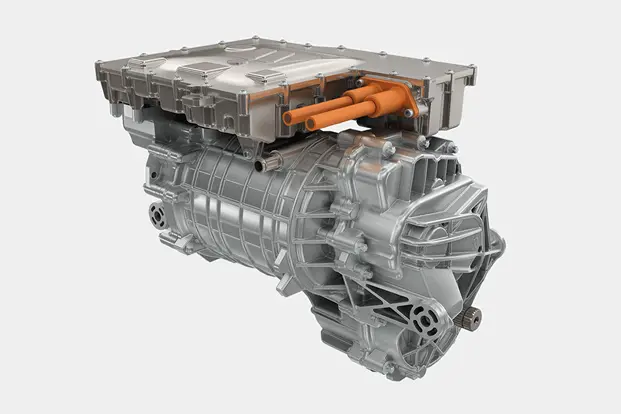

Magna’s 800V eDrive is based on a KPI driven generation approach and can be applied as a highly efficient primary or complementary drive with optional eDecoupling to battery electric vehicles from the C, D and E segments. It delivers a peak power of 250 kW and a peak axle torque of 5,000 Nm.
Primary / Complementary Drive Units
Highly Integrated eDrive Low Highly Efficient
This highly efficient eDrive system is designed for both primary and secondary drive applications in the lower power range. It can be applied as a highly efficient secondary Drive to midsize EVs and Px4 PHEV’s, and as an efficient primary drive to small electric vehicles.

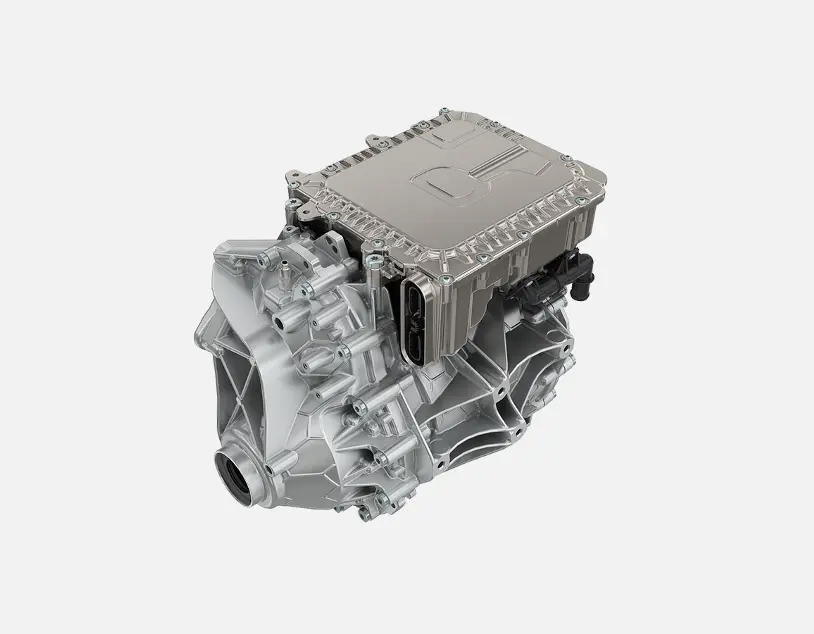

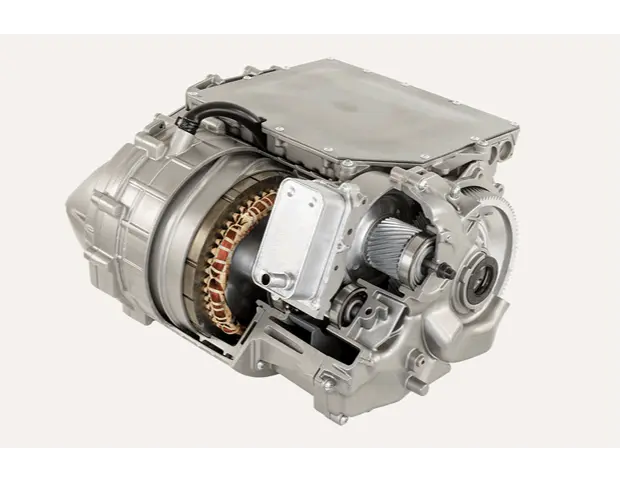

The highly integrated eDrive System contains a flexibly and best-in-class packaged induction e-motor, an integrated high voltage inverter with all integrated combined oil-/water-cooling, a layshaft gearbox and is designed coaxially. Park lock and decoupling are available as optional features. The advanced speed control interface enables Etelligent launch vehicle function.
Power range from 80 kW to 120 kW, scalable from 400V to 800V boardnet.

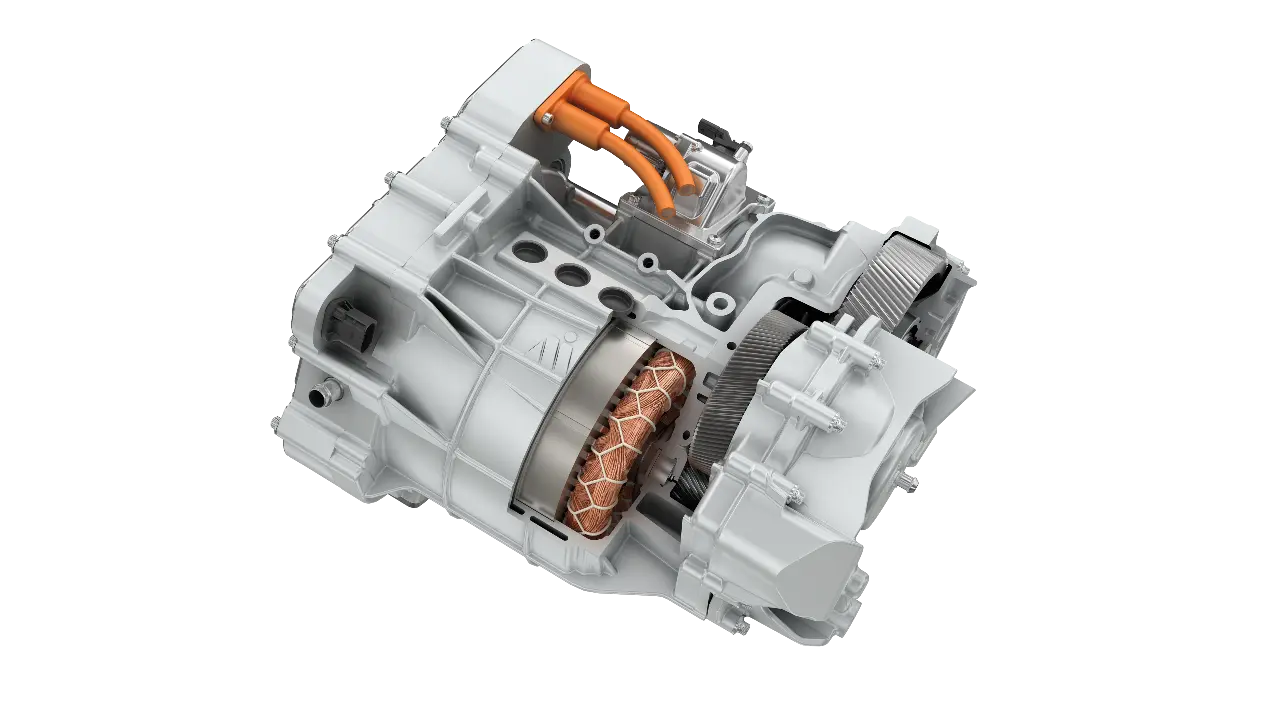

Highly Integrated eDrive Mid HE
High-voltage complementary eDrive system for electric AWD.
Power range from 120 kW to 150 kW, optimized for 800 V.
Highly Integrated eDrive Mid+
Magna offers a highly-integrated eDrive system, which contains gearbox, e-motor, inverter and a torque vectoring option, additionally a decoupling and park lock option can be applied.
It provides up to 160kW for 30sec and up to 4,000Nm at the wheels. The eDrive system fulfills the ASil "D" safety integrity level. It can be applied to both hybrid and battery electric vehicles.
Secondary Drive Units
Highly Integrated eDrive Low CE
This compact eDrive system in the lower power range is a dedicated secondary drive for midsize EVs and also improves longitudinal dynamics.
The highly integrated eDrive system contains coaxial design, layshaft gearbox, an induction e-motor and an integrated high voltage inverter with all integrated combined oil-/water-cooling.
Power range from 80 kW to 120 kW, scalable from 400V to 800V boardnet.
Highly Integrated eDrive Mid CE
Power range from 120 kW to 180 kW, optimized for 800 V. EV dedicated compact secondary boost drives for mid to large size EVs.
Rare earth free e-motor for sustainability.
Heavy Duty electric drive for frame-based vehicle usage. Structure-oriented design to support high payload and towing capability with matching power for continuous duty usage, high peak torque and robustness.
Deep Dive Content

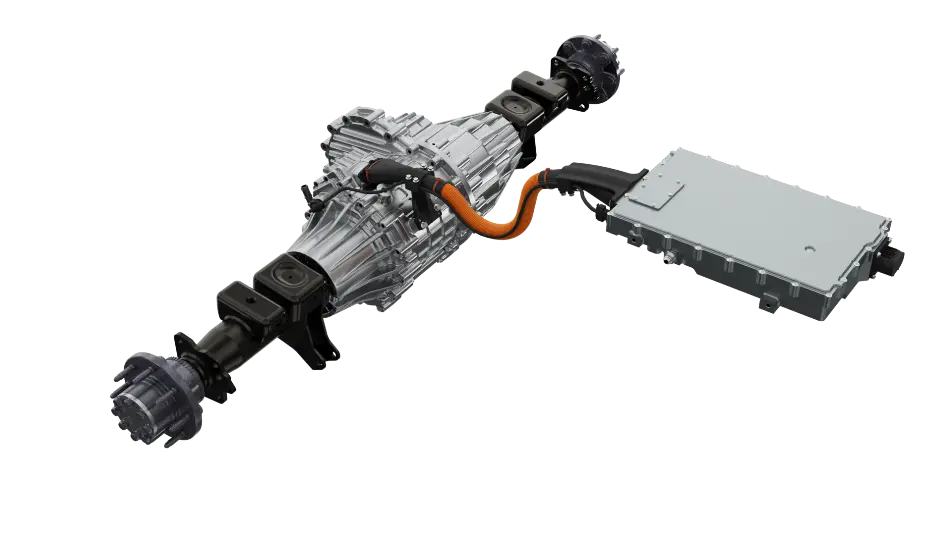

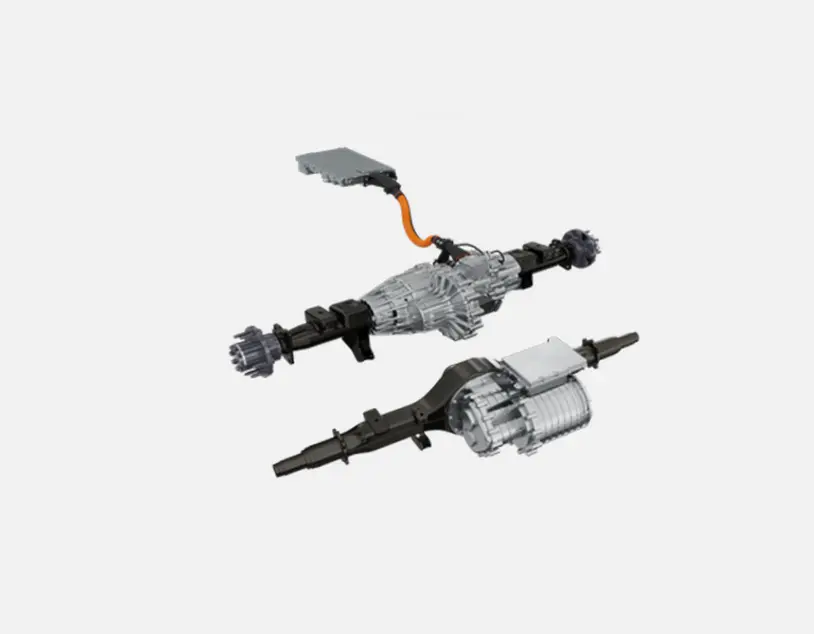

Electric Axle Drive System eBeam™ Mid
Structure oriented design to support high payload vehicles with matching power for continuous duty usage.
Trucks work hard, both for your family and at the job site. An electric truck has to be equally capable, and Magna’s eDS HV eBeam electric axle makes that possible. Innovative engineering means no compromises in towing, payload, or off-road capabilities, and no expensive re-engineering of the truck’s architecture. Magna’s eBeam uses the OEMs’ suspension and brake systems, and is scalable so that it can be used in any solid rear axle truck platform- including light commercial vehicles. Available in several variants, including: single motor/single speed, single motor/two speed, and a twin motor variant. Options include ePark Lock, electric locking differential, with power ranges up to 250kW per motor.
Electric Axle Drive System eBeam™ High
Structure oriented design to support high payload vehicles with matching power for continuous duty usage.
Trucks work hard, both for your family and at the job site. An electric truck has to be equally capable, and Magna’s eDS HV eBeam electric axle makes that possible. Innovative engineering means no compromises in towing, payload, or off-road capabilities, and no expensive re-engineering of the truck’s architecture. Magna’s eBeam uses the OEMs’ suspension and brake systems, and is scalable so that it can be used in any solid rear axle truck platform- including light commercial vehicles. Available in several variants, including: single motor/single speed, single motor/two speed, and a twin motor variant. Options include ePark Lock, electric locking differential, with power ranges up to 250kW per motor.
Highest flexibility for multiple applications
Usually in hybrid architectures, to enable boosting and recuperation, an e-machine must be added to the transmission or engine. However, this also leads to a critical cost-benefit question. With the new Dedicated Hybrid Drives (DHD) we simplified our existing hybrid concepts and utilized our long-term development experience with hybridized dual-clutch transmissions. We added a strong e-machine, shifted the dynamic operation towards it while standardizing the engine operation, and reduced the number of gears.
DHD offer best-in-class electric performance and efficiency, outstanding convenience and adaptability to real-world requirements in different vehicle segments and markets. Magna is looking at a complete systems approach to both conventional and electric platforms.
Find out more about our DHD product family and download the Deep Dive contents:

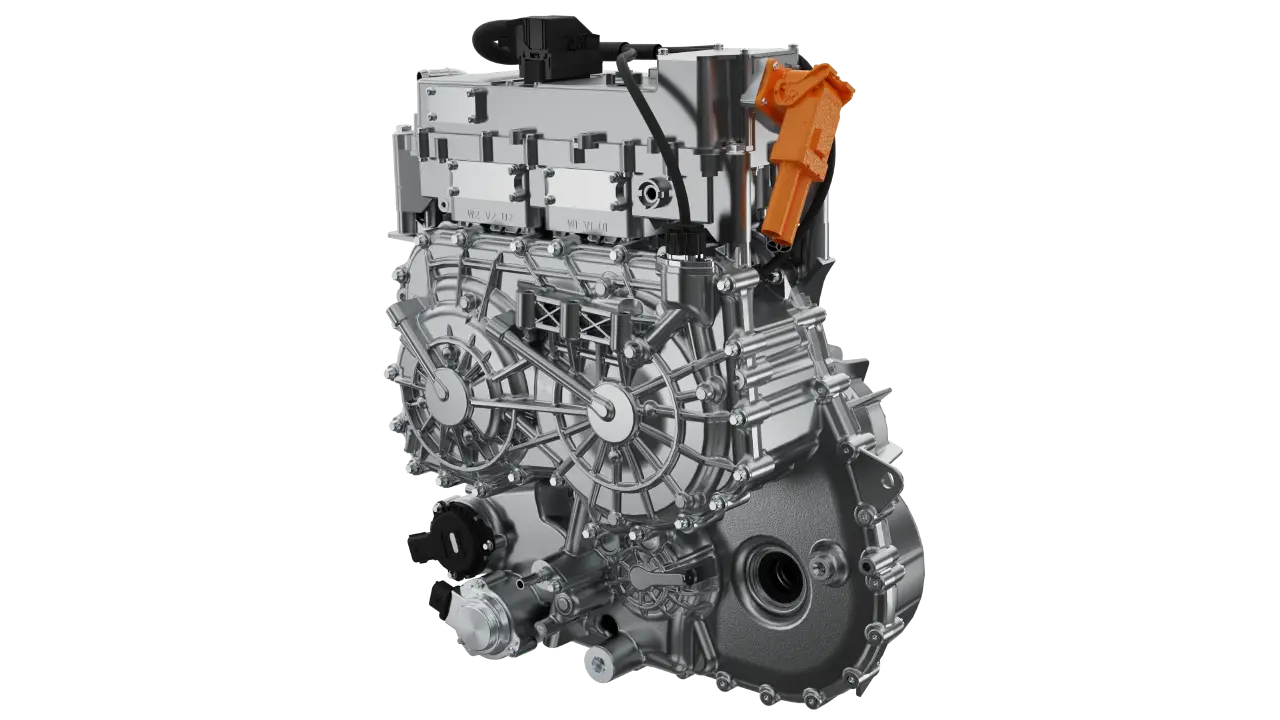

Dedicated Hybrid Drive DHD Duo
The Dedicated Hybrid Drive DHD Duo is a two e-motor suitable for HEV applications, delivering outstanding performance with high drivability and comfort even when driving in congested traffic. DHD Duo is developed in a platform approach, scalable in power and in number of gears to meet B to E vehicle segment requirements.
It enables a flexible architecture switch between P1 + P3, P2 + P3 and Range Extender (REEV). Within the standard P1+P3 hybrid architecture. the P1 e-motor acts as a generator to start the ICE and charge the battery at any time. The P3 traction e-motor is responsible for all-electric starting and reversing and drives the front wheels in serial mode. In parallel mode, both ICE and traction e-motor will cope with each other to deliver as much torque to the wheels as possible to ensure strong acceleration. With this architecture, DHD Duo ensures very smooth and comfortable driving in all driving conditions supported by electric, serial and parallel driving modes.
Being part of Magna’s modular and scalable building blocks, the mature common parts, including e.g., the shift system and park lock system, would be re-utilized. In addition, the usage of dog clutches generates even further package and cost benefits to our global customers.

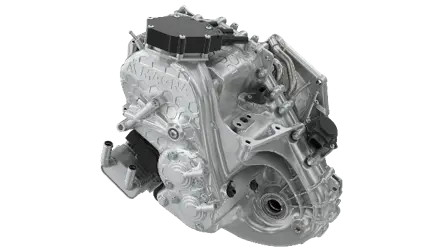

Dedicated Hybrid Drive DHD Eco
DHD Eco – the next-generation hybrid drive
The DHD Eco is consequently designed for dominant electric operation. Therefore, the electric drive is the functional core and the 120 kW e-motor handles the most dynamic driving situations in hybrid mode. In turn, the combustion engine can be operated more consistently resulting in less fuel use and reduced GHG.
Furthermore, the e-motor handles launch and reverse driving. This is beneficial because e-motors can be controlled more exactly and precisely than typical clutches or torque converters. As a result, the DHD Eco offers better traction and launch acceleration. Stop-and-go operation is also more comfortable due to the absence of the clutch and shift operation.
Given its much-reduced mechanical complexity, the DHD Eco is the most cost-efficient plug-in hybrid drive on the market. Best-in-class efficiency and small packaging are further benefits. Its compactness even allows for B segment applications. It enables a new generation of plug-in hybrid drives, which allow for a new level of efficiency and performance in both electric and hybrid driving modes.
Scalable and modular building blocks
The DHD Eco with its electric drive components is part of the Magna kit of modular and scalable building blocks. These core components include e-motors, inverters, shift elements, and clutches, as well as the software itself. This allows for parameters like performance and range to adapt to real-world requirements in different vehicle segments and markets.
Dedicated Hybrid Drive DHD Plus
The DHD Plus is part of the 400 family and uses smart modular scalability approach for high torque, high voltage (HV) applications.
The DHD Plus is reduced to 5 gears (acting as a dedicated hybrid transmission) with eLaunch, eReverse and two gears in electric driving; full powershift capability in all modes.
Efficient HEV and PHEV Technology Demonstrator with DHD Duo.
The technology demonstrator with Magna’s DHD Duo is an advanced HEV and PHEV solution based on a two e-motor architecture. It improves range and efficiency for high-volume passenger cars & SUVs with front-wheel drive.
Competitive advantage/differentiators
- Very good acceleration performance due to the interaction of high-powered e-motor and a multi gear approach
- Very smooth & comfortable driving in all driving conditions supported by electric, serial and parallel driving modes
- Shifting without notice for the multi-speed architecture
Applications/benefits
- Reuse of mature technologies & building blocks, ASIL C for e-motor and inverter
- 140 kW high e-motor peak power
- Impressive acceleration performance, comparable to a BEV
.tmb-wide480p.webp?Culture=de&sfvrsn=9bed2204_1)
Discover Magna's Electrified Powertrain Demonstrators
EtelligentEco
Connected PHEV Powertrain Solution with Full Drivability in Electric Mode
EtelligentReach
Intelligent BEV Powertrain Solution with Maximum Range Efficiency and Drivability
EtelligentCommand
Efficiency, Performance, and Control in one PHEV Solution
EtelligentForce
Powerful BEV Drivetrain Solution for Passenger Trucks and Light Commercial Vehicles
EtelligentTerrain
Advanced BEV Powertrain Solution for Sport and Light Utility Vehicles
